Iron Removal Plant in Bangladesh

Iron Removal Plant

Iron Removal Plant  in Bangladesh is handiest resolution in Industrial Water  purifier Sector , It’s extensive utilizing for Industrial resolution in addition to dwelling use . Our Industrial Reverse Osmosis Plant  and Iron removal plant in Bangladesh are rigorously custom-made and configured to go well with the person requirement of the output water, which varies from regular ingesting water software to the particular utilization, reminiscent of meals Processing Plant and others. Our design Iron removal plant in Bangladesh encompass FRP Vessel Manganese Zeolite ZeomanganBirm Media Graded Sand TIRM Media Anthracite Granular Activated Carbon SS Centrifugal Pump and imported Meals Graded uPVC Pipe and Fittings.

Our Iron removal plant is used for therapy of surface water and surface water usually for discount of iron, manganese, ammonium, and aggressively in waterworks, corporations, and personal households.

Strain filter plant will also be used for particular fields of software reminiscent of de-chlorination of water, reuse
of course of water, filtration of seawater, percolate filtration, remaining filtration of industrial or municipal waste waterIron Removal Plant In Bangladesh


Our specifically designed Iron removal plant (IRP) can take away metals and chemical contamination upto 35 PPM. Our Iron removal plant in Bangladesh are supplied with extremely adsorptive filters to entice even the final hint of iron content material in water and thereby rendering clear and wholesome water.  Our used Filter Media, Chemical compounds, FRP Vessel are value efficient lengthy life usable.

We provide our shoppers an encompassing range of Iron removal plant in Bangladesh which is broadly used for the removing of extra iron content material current within the water. All our plant designing’s are utterly custom-made, in order that we may meet the consumer requirement effectively and successfully.  The Iron removal plant in Bangladesh, we provide is manufactured with excessive grade uncooked materials. We have now wide selection of models like Iron removal plant in Bangladesh for flat and flats and residential institutions, Industrial Iron Elimination, FRP Iron Elimination, MS Iron Elimination.

Our specifically designed
Iron removal plant in Bangladesh can take away metals and chemical
contamination .We designs the very best adsorptive filters
to entice even the final hint of iron content
material in your water and thereby rendering clear and wholesome water.

Our Iron removal plant in Bangladesh Appropriate for:

  • Residential Institutions like
    Flats, house , and Properties
  • Instructional Establishments like school ,college ,university
  • Hotel and Resorts
  • Hospitals
  • Municipality water provider
  • Pharmaceutical wants
  • Industries


The completely different methods for Iron removing Plant by physical-chemical approach based mostly on water pH,
Iron content material, hardness and so forth are as given beneath.

  • Aeration
  • Compelled Aeration with compressed air
  • Chemical Dosing for coagulation, pH adjustment
  • Contact bed oxidation
  • Filtration


The Iron Elimination Scheme of Stream capability 0.50 to as per require cu.m/hr is designed and proposed by us on the
premise of Uncooked inlet water high quality and website situations to provide Iron free potable water as per IS and WHO requirements. The completely different parts of our IRON REMOVAL Plant in BD are as given beneath.

  • Spray Aerator/Cascade aerator
  • Air Compressor
  • Chemical Dosing System with mixer
  • Oxidation Chamber
  • Strain/Gravity Filtration


  • FRP Vessel designed as per IS / NDF requirements
  • Uniform inlet water distributor
    and backside collecting system
  • Technically designed graded media
  • Pipe-works format designed for
    simple operation and upkeep
  • Handled Water ensures BSTI and WHO standard.



Media will be use according to the level of iron in raw water and also according to production capacity

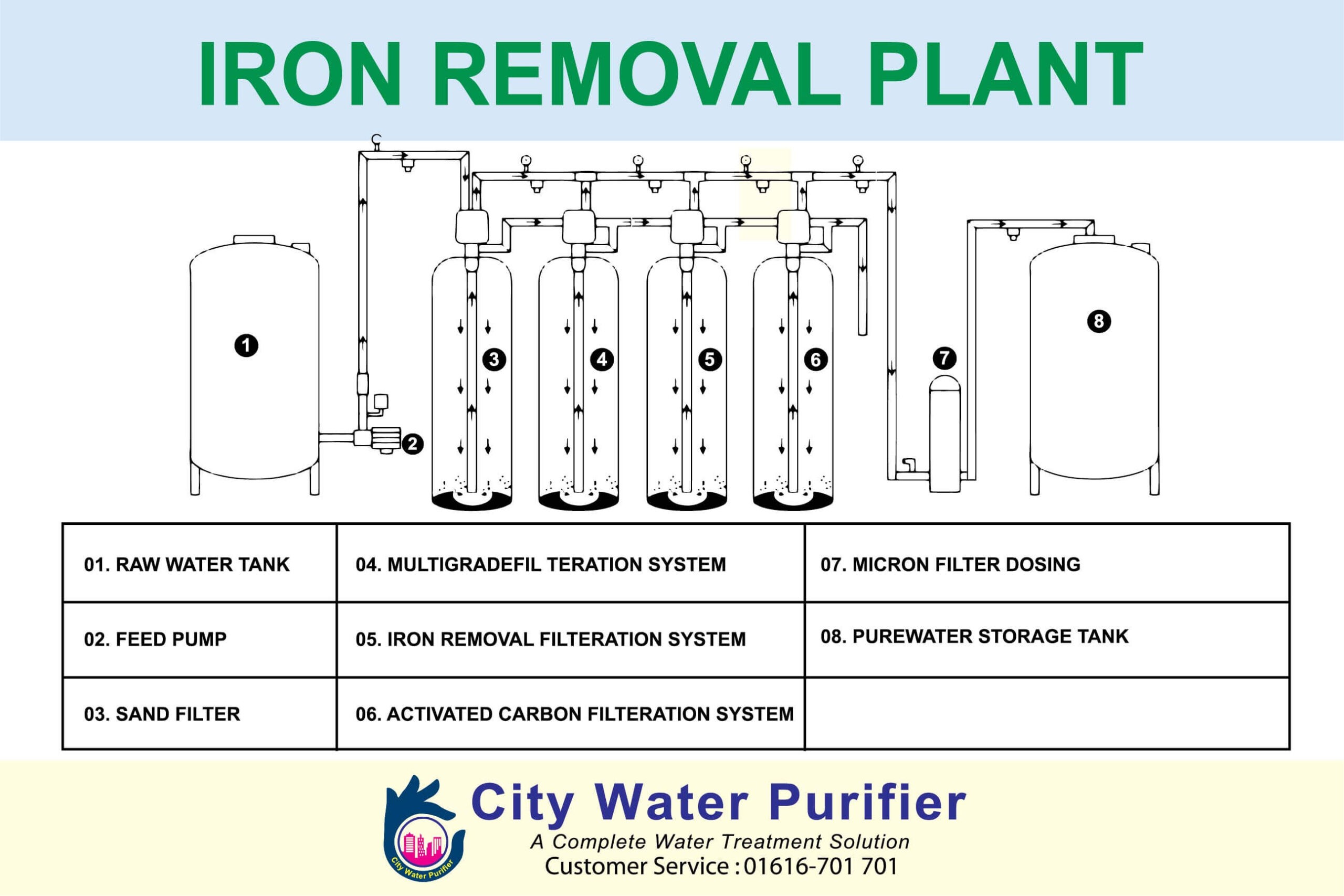

1.Feed pump: In the kind of IRON REMOVAL PLANT feed pump is the first step. In IRON REMOVAL PLANTfeed pump transfers water from the raw tank to the pre-treatment unit .if raw water tank is empty then feed pump ant total IRON REMOVAL PLANT will be automatically stopped.

2.Non-return bulb: In a IRON REMOVAL PLANT  when you will stop the machine after passing the water by feed pump then the non-return bulb will guard the water to not coming back.

3.Feed pump pressure switch :In a IRON REMOVAL PLANT  if any vessel or filter is block ,if the pressure is more then 4kg then the feed pump will automatically stop.

4.Water sample bulb: To justify the activity of chemical or filter in every step of a IRON REMOVAL PLANT ,you have to use water sample bulb to take water.

5.Multi Media filter :Media used-manganese zeolite, Anthracite, Birm, Sand, Gravel ):It removes iron arsenic ,rust, sulfer , manganese ,Drit turbidity ,bad taste, odor and even chlorine by using iron removal media in a IRON REMOVAL PLANT.



                                                                                     Iron Removal Plant In Bangladesh

6.Sand filter : In a IRON REMOVAL PLANT sand filter reduce d cast and clean water.

7.Activated carbon filter :In a IRON REMOVAL PLANT activated carbon filter absorbs the dirt, lead, chlorine , mercury and bad taste and odor. By removing these particles it will reduce the turbidity and make the water crystal clear.

8.Micron filter: In IRON REMOVAL PLANT micron filter also known as security filter , because it cleans the water again and don,t spent any kind of dust before the water goes to the next step.

9.Level switch: when pure water tank is full in the IRON REMOVAL PLANT in Bangladesh the RO machine will automatically stop.
